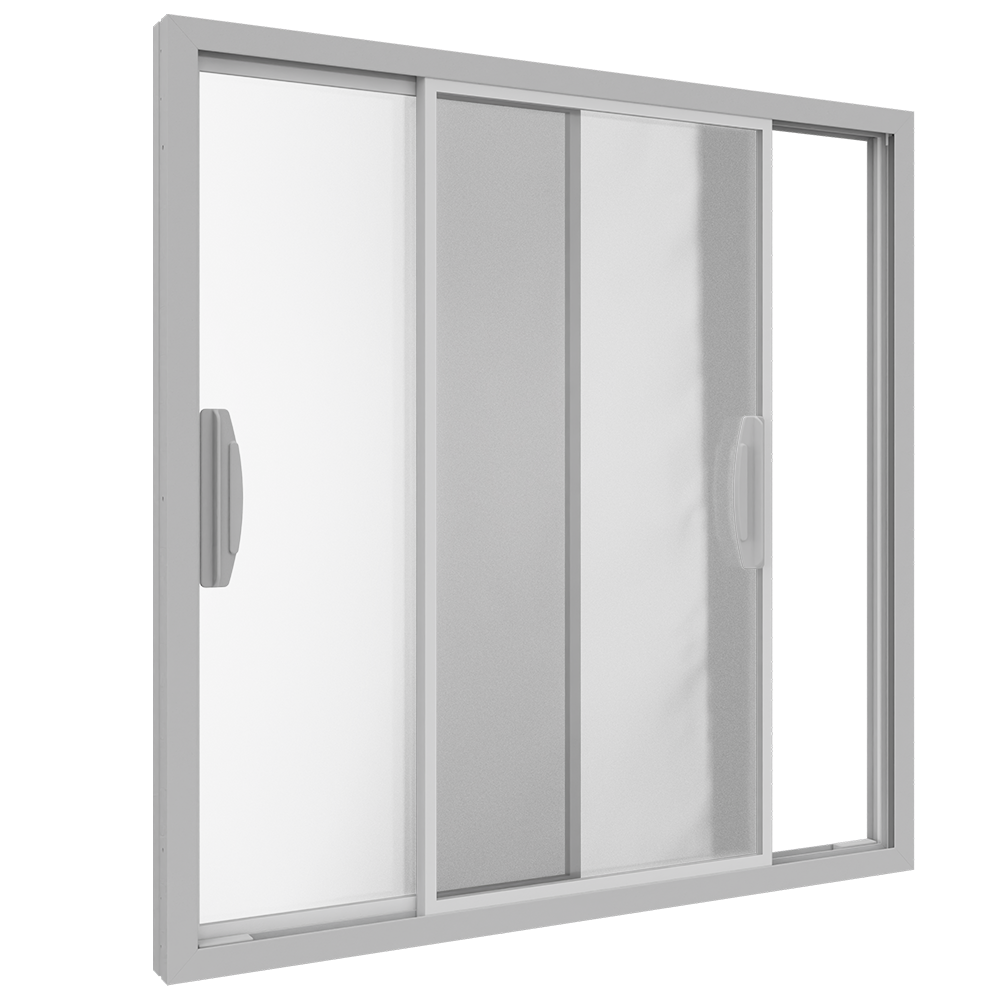

Jazz 21

Sliding Doors, Double Glass

Glass Doors

A sliding solution with a minimal design, ideal for counters at normal temperatures. The "all-glass" solution concept offers excellent visibility and value appreciation of the product. Available with perimeter serigraphy, or with a full vision version with double glass composed of transparent vertical spacers.

Up to 60% energy saving is guaranteed thanks to the double-glazing with low-emissivity coating on the outside and gas inside, both in tempered glass. Automatic closing ensures comfort, safety, and silent operation. It's an excellent solution for stores with limited aisle space.

Technical Specifications

Discover the technical specifications of Officine Rami's Jazz 21 glass doors.

• Suitable for refrigerated counters at normal temperature (>0°C)
• Energy consumption savings of up to 60%.
• Available in any size according to requirements.
• "All-glass" solution with frameless doors. Elegant perimeter serigraphy with reduced dimensions ensures high product visibility and a linear design.
• Easy and quick installation.
• Supplied with double glazing, 22 mm thick, consisting of 4 mm tempered glass, a 14 mm warm edge spacer, and 4 mm magnetron low-emissivity tempered glass. It can be filled with argon gas
for improved thermal insulation, achieving up to 1.1 Ug.
• Perimeter PVC frame for reduced heat transfer and optimized thermal insulation, resulting in a reduced risk of condensation.
• On request, it can also be supplied only with upper and lower profiles
• Safety handle and anti-crushing door stop.
• Flat and removable lower sliding guide for quick and easy cleaning.
• Silent sliding system with counterweight or return spring.
• Automatic closing.
• Insulated glass doors are tested in Class 3M1 (25°C/60% r.H.).
• Ideal for both new installations and retrofitting.
• Possibility of adding LED lighting.
