Mosquito nets with cassette thickness of 50mm.

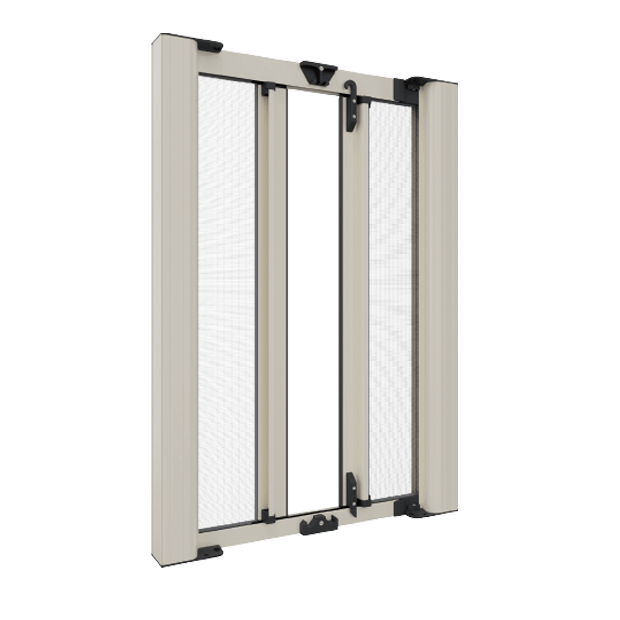

Side slide mosquito net, equipped with a windproof brush and, upon request, slow back-on-top system.
Suitable for french doors, with manual spring winding and magnetic closing system.
Available, for some colours, with matching plastics.

Components

Discover the specific components of Officine Rami's mosquito nets

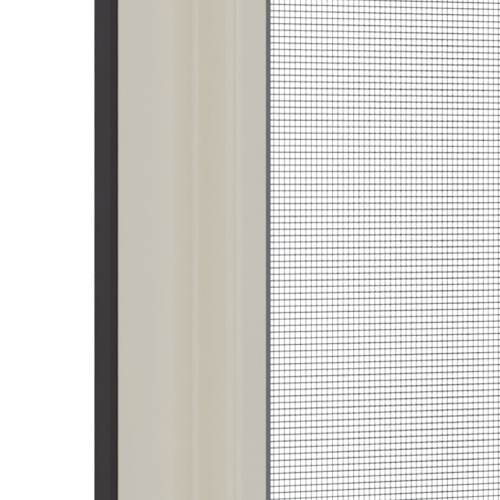

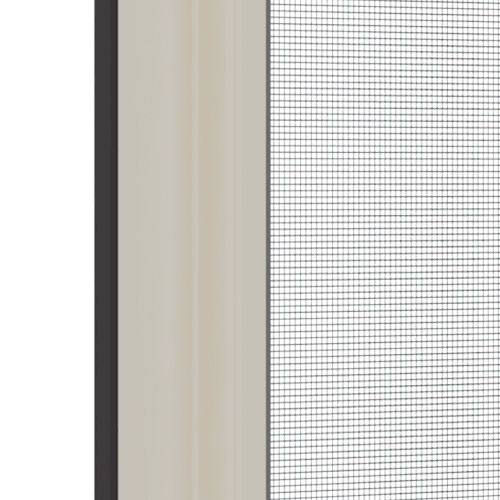

Magnetic closing

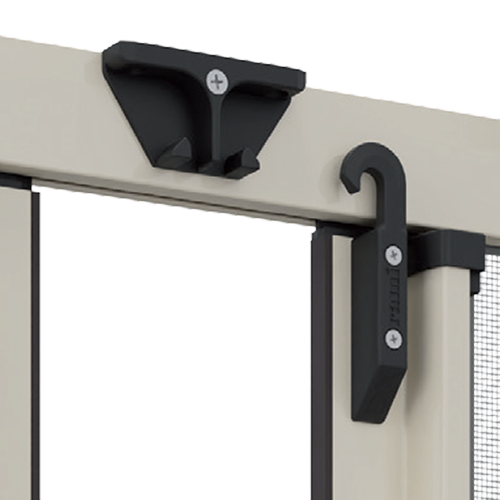

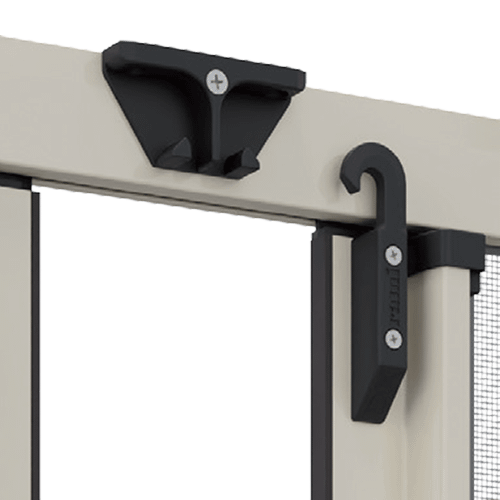

Top fastening

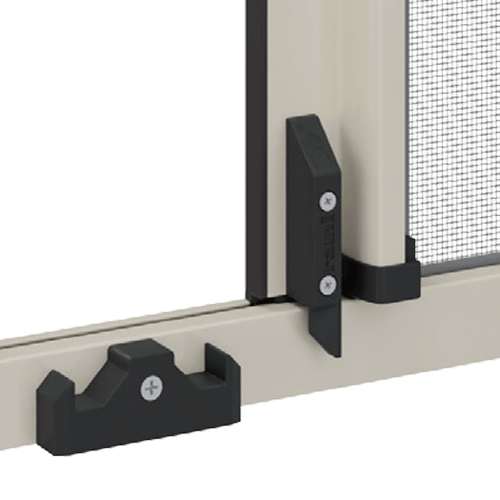

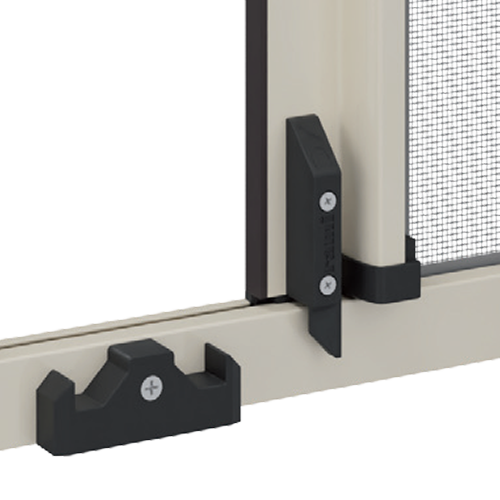

Bottom Fastening

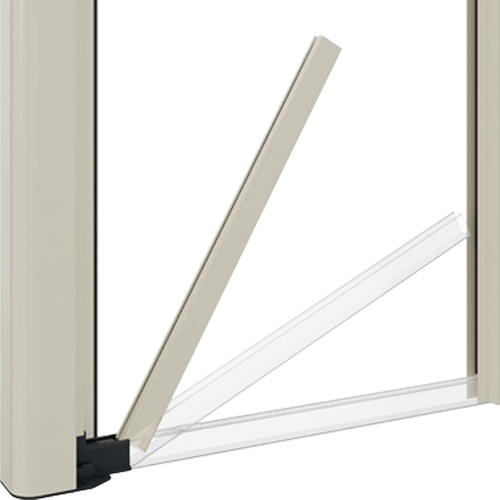

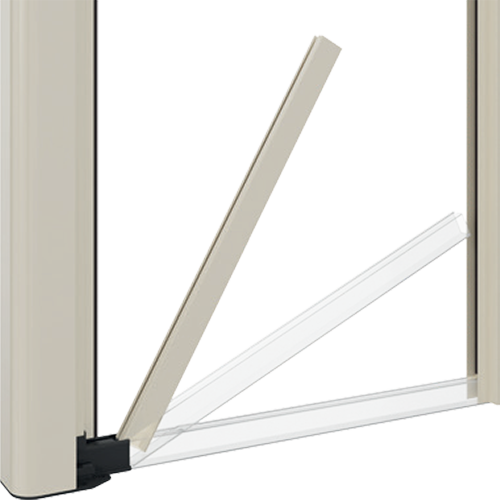

Removable Bottom Track

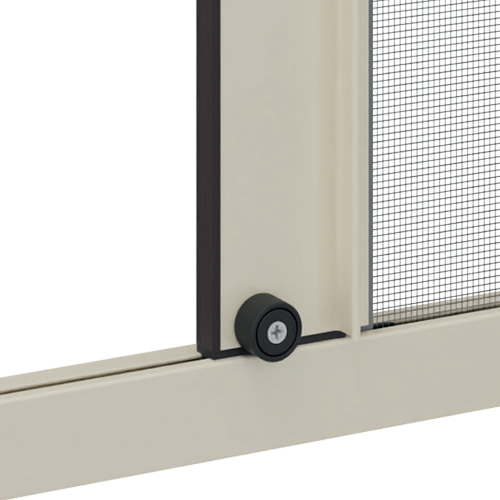

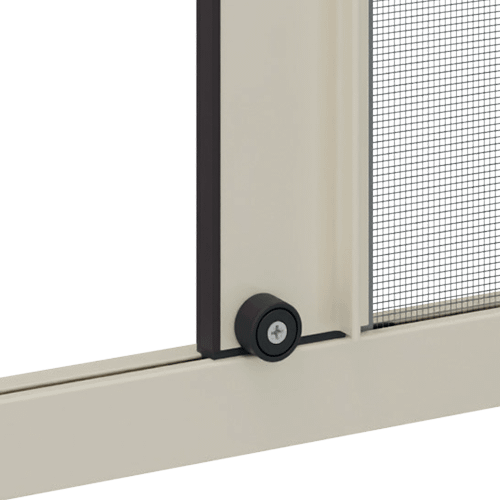

Sliding Wheel
Technical Specifications

Each mosquito net has its own technical specifications; learn more

Suitable for: French doors
Winding type: Manual spring
Closing system: Magnet
Configuration: symmetrical
Cassette: Equipped with an anti-insect mesh cleaning brush
Track: Windproof
Handle: Internal / external with ergonomic grip
Mesh: Fiberglass
Fixing System: Screw/plug

ON REQUEST
Winding Control: Slow back-on-top system
Configuration: Asymmetrical
Cassette: Equipped with a brush for recovery in out-of-true issues
Fixing System: Clips (snap-in supports)
Balance Profile: For the cassette

Color Range

Officine Rami offers a wide range of fabric colours, both for the aluminium structure and the mesh

Silver Anodized

Painted Bronze *

White R. 9016 *

White R. 1013 *

White R. 9016 Matte

Dark Brown

Brown R. 8017 Matte

Green R. 6005 Matte

Black R. 9005 Matte

Viv Green 101

Viv Brown 721

Viv Gray 700

Walnut B70 R

Light Oak P80 R

Walnut 102/70 R

Cherry 317/70 R

Light Douglas 335/80 R

Light Cork Oak 386/73R

White / White 22205

White / Sand 22203

White / Pearl Gray 22205

White / Dark Gray 22206

White / Dark Gray 22204

Gray / Anthracite 22207

White / White 1929

Beige/Beige 1930

Pearl Gray / Pearl Gray 13117

Brown / Brown 14853

Green / Green 1933

Gray / White 1498

Gray / White 1498

Fiberglass Mesh, Gray (Standard)

Panorama Mesh, Gray,
Thin with High Transparency

Zebra Mesh, with Black/White Stripes for Enhanced Visibility

Similtuff Mesh, Gray
(Recommended for Zip Applications)

Aisi 316 Stainless Steel Mesh
(Recommended for Fixed Panels)

Aluminum Mesh, Gray
(Recommended for Fixed Panels)

Pleated Mesh, Gray
(Only for EVA Model)

Pleated Mesh, Black

Antipo 30 Mesh, Gray, with Gtot of 0.34, Comparable to Solar Screens, Eligible for Tax Deductions

* Matching colours (for some models; some details provided in black)

NOTES:
The colors shown in these tables are purely indicative and should not be considered as reference shades in case of color discrepancies from the actual ones.
Colors may not be available for some catalog models and may require an additional charge in some cases. Refer to color samples for a closer color match.ns compared to the ordered material's color. Aluminum plates are made using chemical components to maintain a consistent color over time, but they may have variations compared to the ordered material's color. Therefore, please request detailed information and availability by contacting the company in advance during the ordering phase.

Technical Specifications

Small technical details useful to choose the most suitable mosquito net for your needs

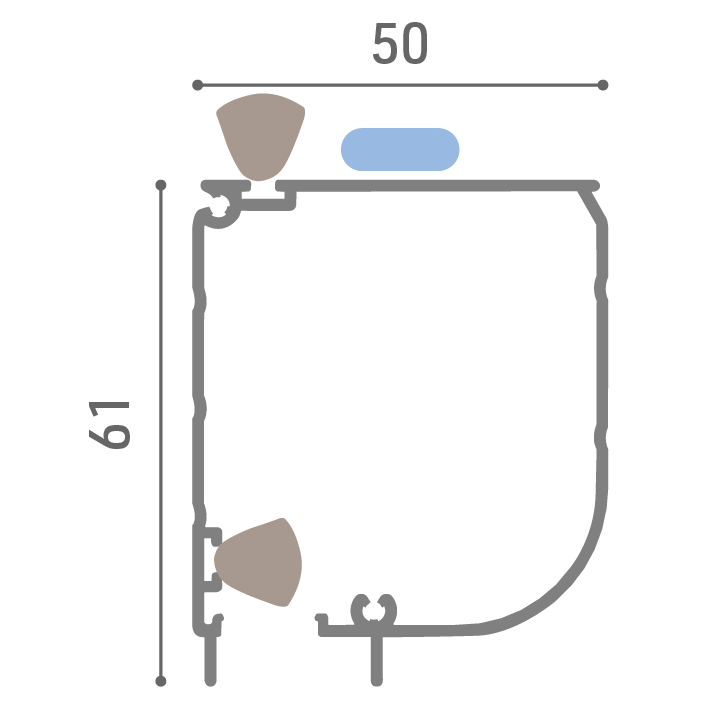

Cassette

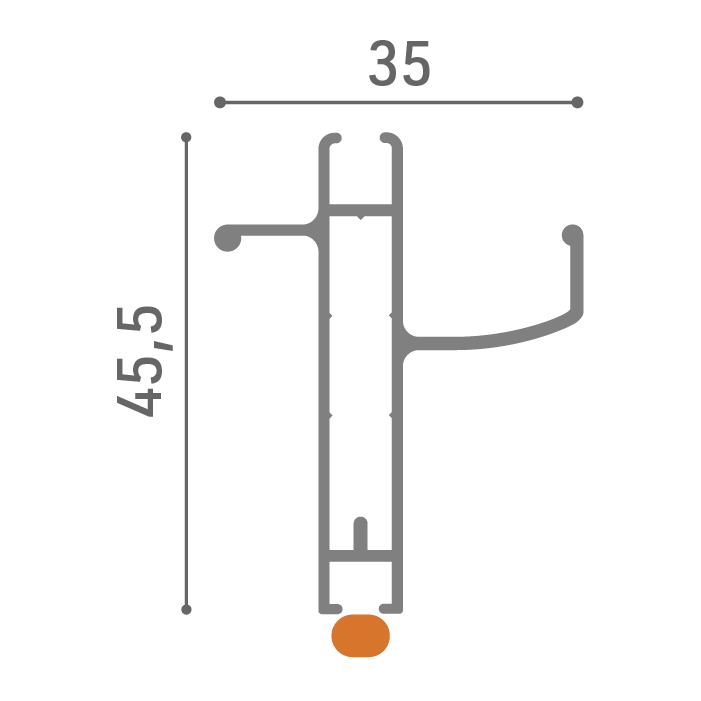

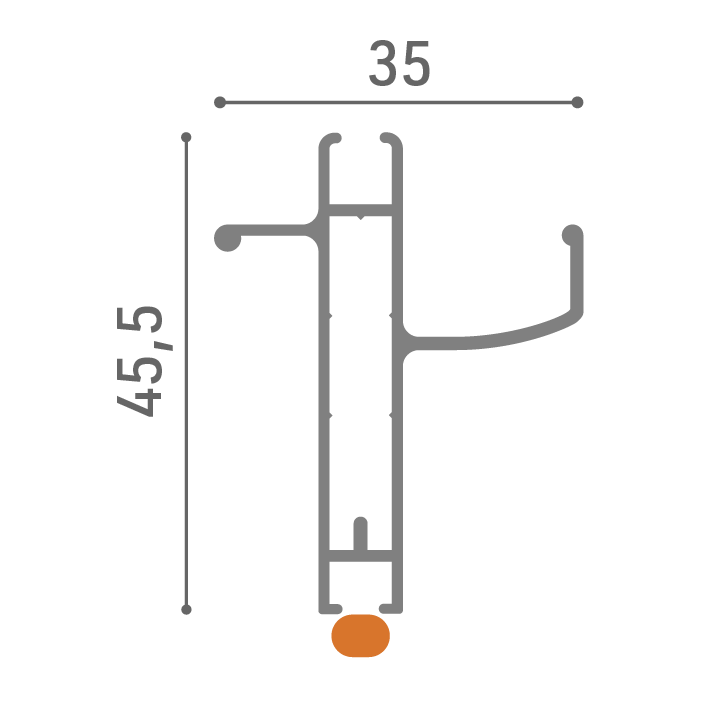

Handlebar

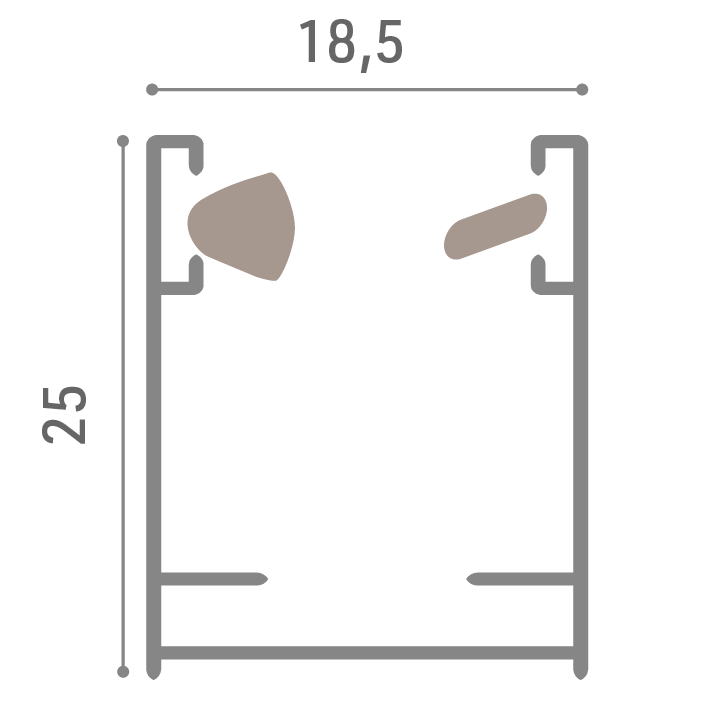

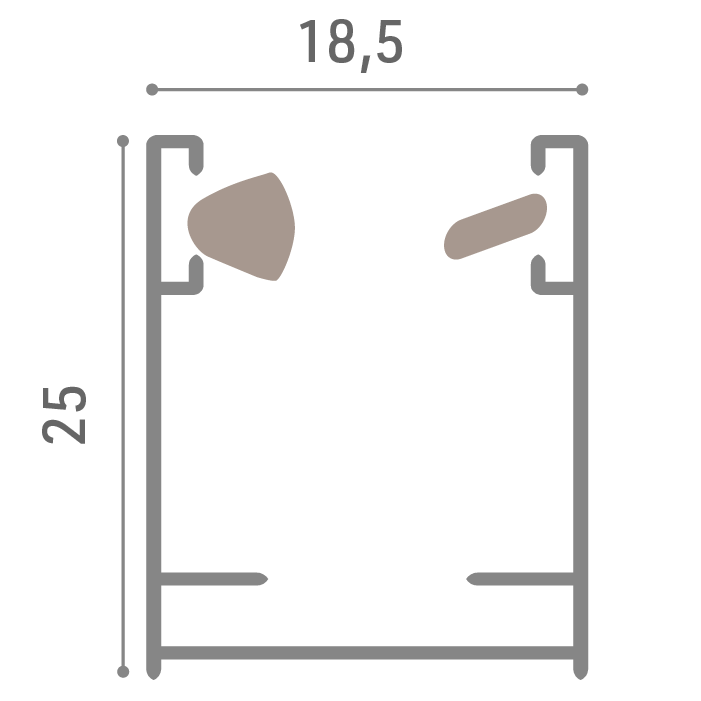

Bottom track

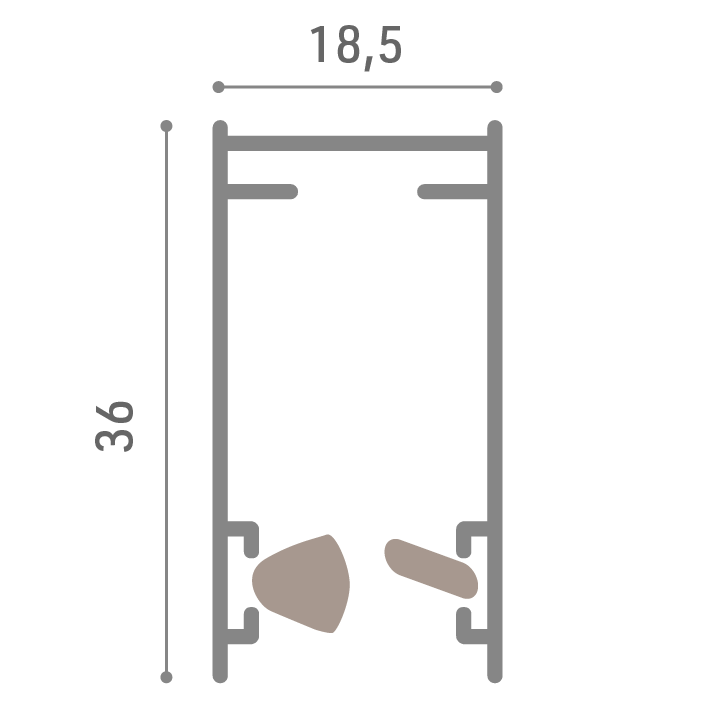

Top Track

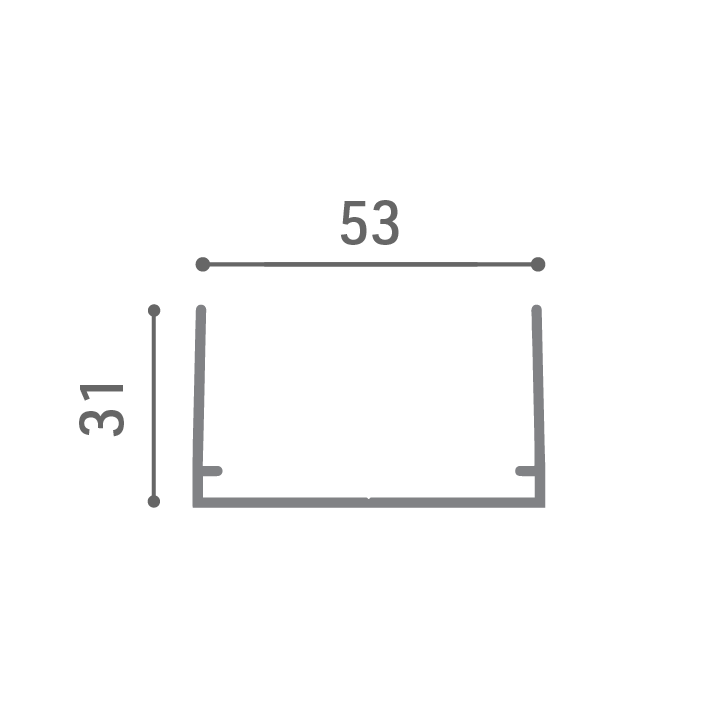

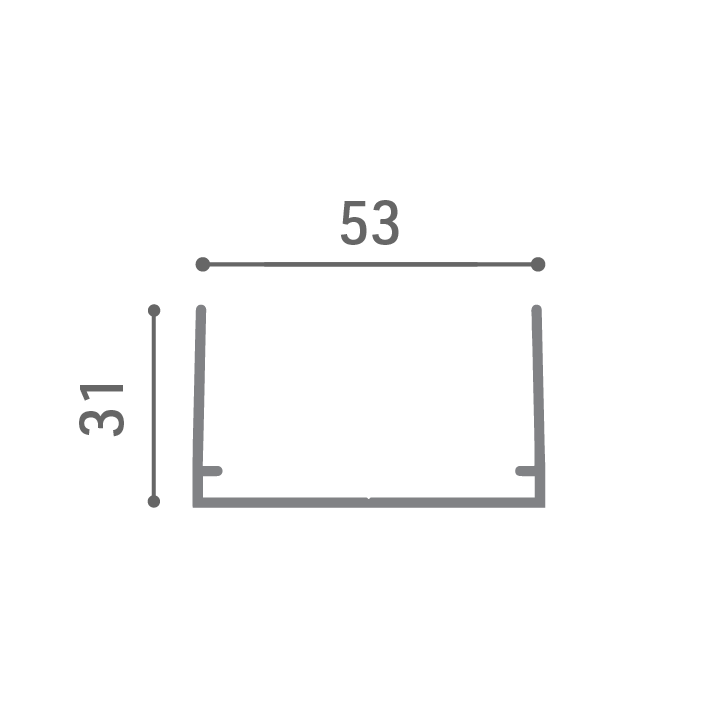

Balance Profile
Upon Request

Profiles Legend

Clips
clips
Magnet
Counter Magnet
Brush
for Insect
Screen Cleaning
Windproof
Brush

Recommended sizes (max)

Width: 2800 mm

Height: 2600 mm
