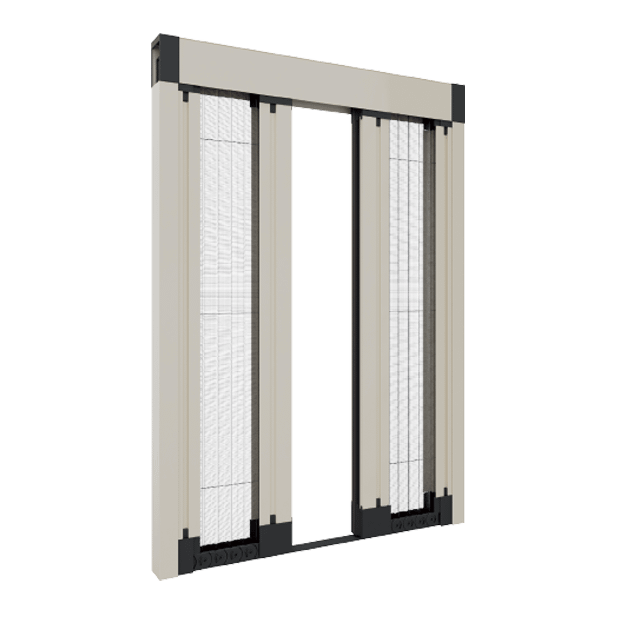

Eva 38 Plissè
Double Side mosquito net
Mosquito Nets with chain rail and pleated option
Vertical
Sliding
Horizontal
Sliding
Pleated
Net
Quick Click-Clack
Fastening/Release
Cassette
Size
Edge
Buttons
Windproof
Brush Track
Zip
Track
Treaded Sliding
Regulator
Recessed Low-Profile
Track (Flat)
Motorized
Rolling
Large
Dimensions
Matching Plastic
Components
Slow back-on-top
system
Anti-Strangulation
System
Side slide with walkable and recessed floor tracks to avoid architectural barriers.
Equipped with flat mesh and textured sliding regulator.
Suitable for French doors, with manual Winding and magnet closing system.
Also ideal for large dimensions.
Components
Discover the specific components of Officine Rami's mosquito nets
Recessed Track
Magnetic closing
Clips
Additional Handle
Cassette and
Handle Assembly
Technical Specifications
Each mosquito net has its own technical specifications; learn more
Suitable for: French doors
Winding type: Manual, stop at any point
Closing system: Magnet
Configuration: symmetrical
Track: Bottom track, walkable and recessed / without architectural
barriers
Handle: Ergonomic internal / external grip
Mesh: Black polyester
Fixing System: Clips (snap supports)
ON REQUEST
Configuration: Asymmetrical
Balance Profile: Cassette side
Handle: Recessed
Mesh: Gray polyester
NOTE: For each individual cassette, the height must be 300
mm larger than the width.
Widths larger than 1500 mm are equipped
with black support bars.
Color Range
Officine Rami offers a wide range of fabric colours, both for the aluminium structure and the mesh
Silver Anodized
Painted Bronze
White R. 9010
White R. 1013
Dark Brown
Brown R. 8017 Matte
Green R. 6005 Matte
Black R. 9005 Matte
Viv Green 101
Viv Brown 721
Viv Gray 700
White / White 22205
White / Sand 22203
White / Pearl Gray 22205
White / Dark Gray 22206
White / Dark Gray 22204
Gray / Anthracite 22207
White / White 1929
Beige/Beige 1930
Pearl Gray / Pearl Gray 13117
Brown / Brown 14853
Green / Green 1933
Gray / White 1498
Gray / White 1498
Fiberglass Mesh, Gray (Standard)
Panorama Mesh, Gray,
Thin with High Transparency
Zebra Mesh, with Black/White Stripes for Enhanced Visibility
Similtuff Mesh, Gray
(Recommended for Zip Applications)
Aisi 316 Stainless Steel Mesh
(Recommended for Fixed Panels)
Aluminum Mesh, Gray
(Recommended for Fixed Panels)
Pleated Mesh, Gray
(Only for EVA Model)
Pleated Mesh, Black
Antipo 30 Mesh, Gray, with Gtot of 0.34, Comparable to Solar Screens, Eligible for Tax Deductions
NOTES:
The colors shown in these tables are purely indicative and should not be considered as reference shades in case of color discrepancies from the actual ones.
Colors may not be available for some catalog models and may require an additional charge in some cases. Refer to color samples for a closer color match.ns compared to the ordered material's color. Aluminum plates are made using chemical components to maintain a consistent color over time, but they may have variations compared to the ordered material's color. Therefore, please request detailed information and availability by contacting the company in advance during the ordering phase.
Technical Specifications
Small technical details useful to choose the most suitable mosquito net for your needs
Cassette
Handlebar
Bottom track
Top Track
Balance Profile
Upon Request
Profiles Legend
Fastening
clips
Magnet
Counter Magnet
Brush
for Insect
Screen Cleaning
Windproof
Brush
Recommended sizes (max)
Width: 4000 mm
Height: 3150 mm

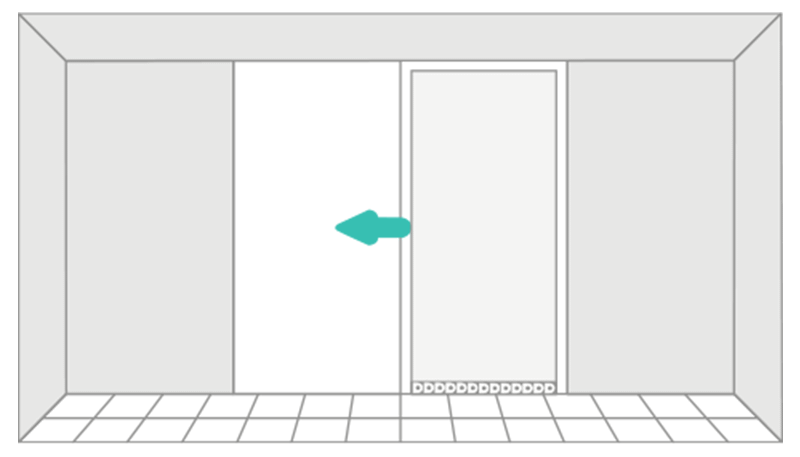

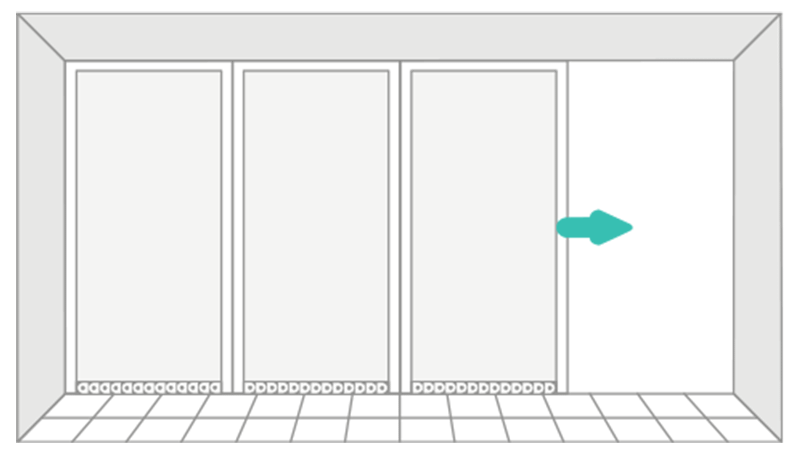

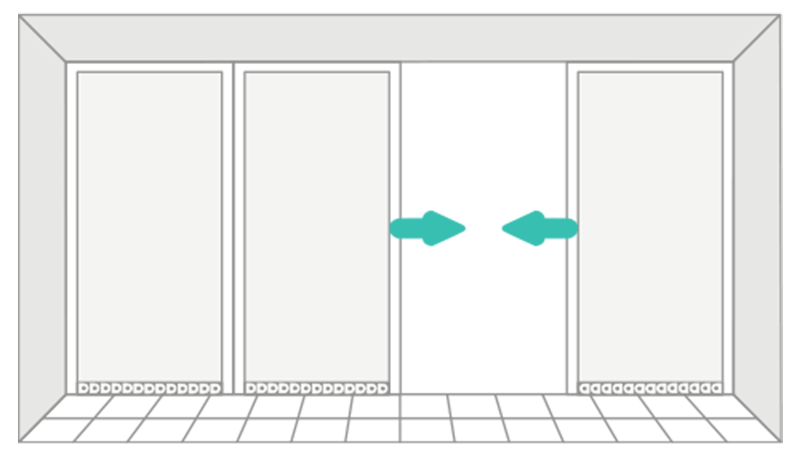

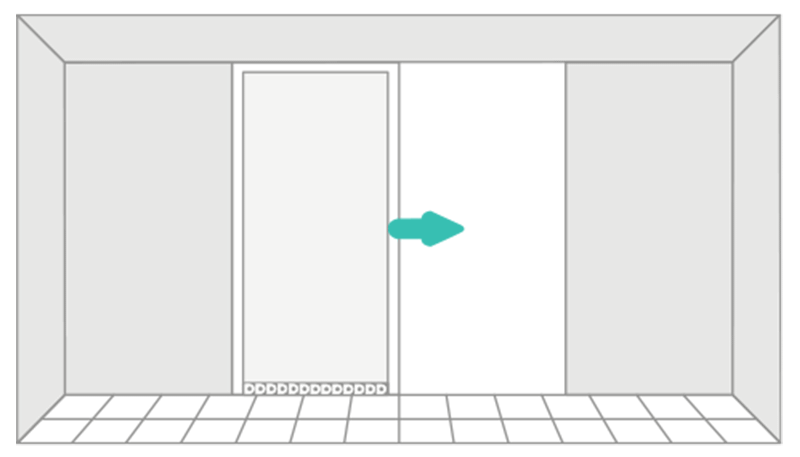

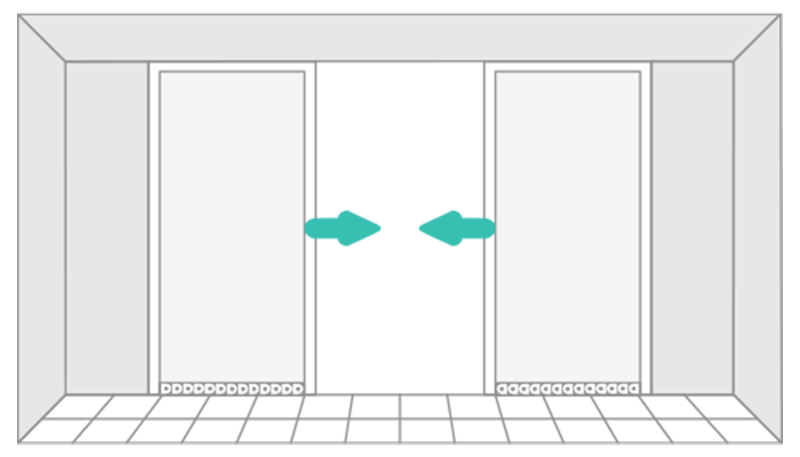

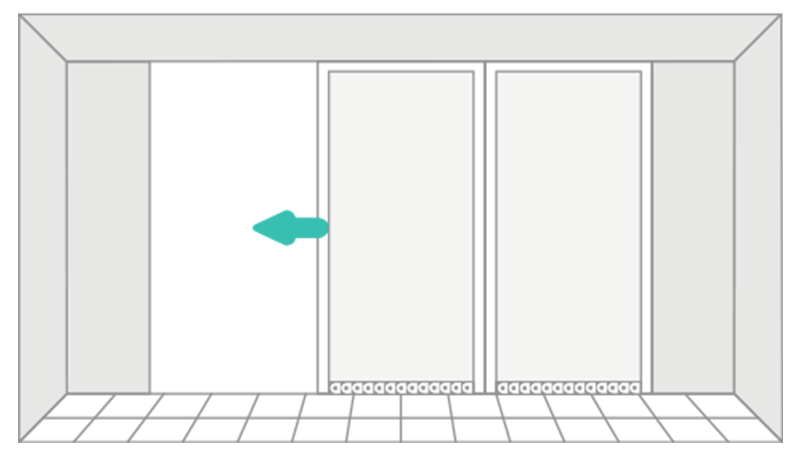

Configurations
Recessed Version with Balance tool version
