Mosquito Nets with chain rail and pleated option

Legend of characteristics
Vertical
Sliding
Horizontal
Sliding
Pleated
Net
Quick Click-Clack
Fastening/Release
Cassette
Size
Edge
Buttons
Windproof
Brush Track
Zip
Track
Treaded Sliding
Regulator
Recessed Low-Profile
Track (Flat)
Motorized
Rolling
Large
Dimensions
Matching Plastic
Components
Slow back-on-top
system
Anti-Strangulation
System
Mosquito nets with a 40mm Cassette.
Side slide with walkable and recessed floor tracks to avoid architectural barriers.
Equipped with flat mesh and textured sliding regulator.
Ideal for French doors, they have a manual spring mechanism for Winding and magnetic closing system.

Components

Discover the specific components of Officine Rami's mosquito nets

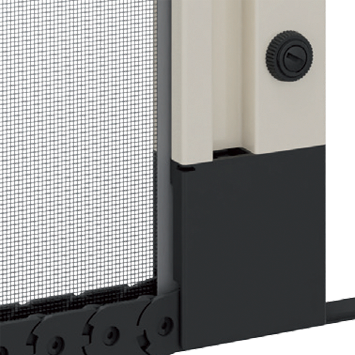

Regulator
Recessed Track
Magnetic closing

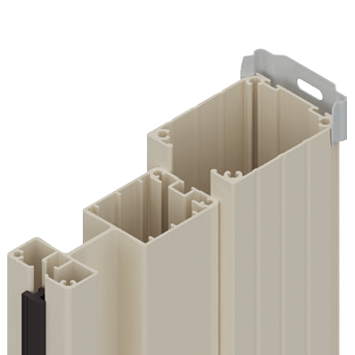

Clips

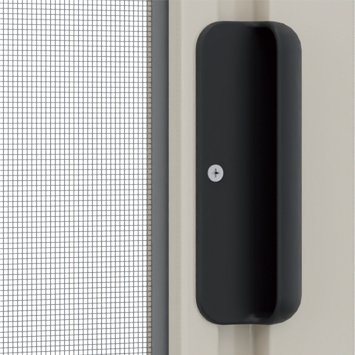

Handle
Technical Specifications

Each mosquito net has its own technical specifications; learn more

Suitable for: French doors
Winding type: Manual spring, stop at any point
Winding control: Textured sliding
regulator
Closing system: Magnet
Configuration: symmetrical
Track: Bottom track, walkable and recessed / without architectural
barriers.
Top track, with insect screen brush cleaner
Handlebar: Ergonomic internal / external grip
Handle: Recessed
Mesh: Fiberglass
Fastening system: Clips (snap supports)

UPON REQUEST

Closing system: Deadlock
Configuration: Asymmetrical

NOTE: The height should be 200 mm larger than the width.

Color Range

Officine Rami offers a wide range of fabric colours, both for the aluminium structure and the mesh

Silver Anodized

Painted Bronze

White R. 9010

White R. 1013

Dark Brown

Brown R. 8017 Matte

Green R. 6005 Matte

Black R. 9005 Matte

Viv Green 101

Viv Brown 721

Viv Gray 700

Walnut B70 R

Light Oak P80 R

Walnut 102/70 R

Cherry 317/70 R

Light Douglas 335/80 R

Light Cork Oak 386/73R

White / White 22205

White / Sand 22203

White / Pearl Gray 22205

White / Dark Gray 22206

White / Dark Gray 22204

Gray / Anthracite 22207

White / White 1929

Beige/Beige 1930

Pearl Gray / Pearl Gray 13117

Brown / Brown 14853

Green / Green 1933

Gray / White 1498

Gray / White 1498

Fiberglass Mesh, Gray (Standard)

Panorama Mesh, Gray,
Thin with High Transparency

Zebra Mesh, with Black/White Stripes for Enhanced Visibility

Similtuff Mesh, Gray
(Recommended for Zip Applications)

Aisi 316 Stainless Steel Mesh
(Recommended for Fixed Panels)

Aluminum Mesh, Gray
(Recommended for Fixed Panels)

Pleated Mesh, Gray
(Only for EVA Model)

Pleated Mesh, Black

Antipo 30 Mesh, Gray, with Gtot of 0.34, Comparable to Solar Screens, Eligible for Tax Deductions

NOTES:
The colors shown in these tables are purely indicative and should not be considered as reference shades in case of color discrepancies from the actual ones.
Colors may not be available for some catalog models and may require an additional charge in some cases. Refer to color samples for a closer color match.ns compared to the ordered material's color. Aluminum plates are made using chemical components to maintain a consistent color over time, but they may have variations compared to the ordered material's color. Therefore, please request detailed information and availability by contacting the company in advance during the ordering phase.

Technical Specifications

Small technical details useful to choose the most suitable mosquito net for your needs

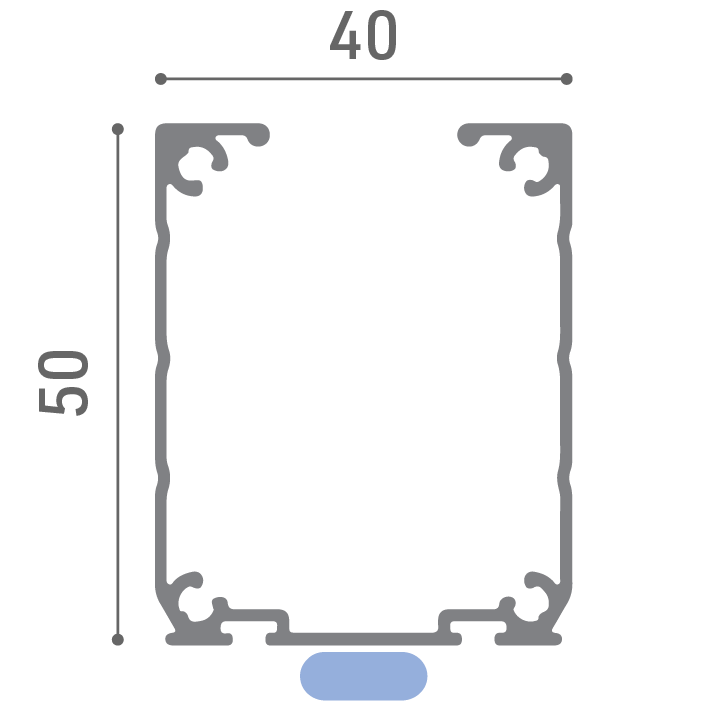

Cassette

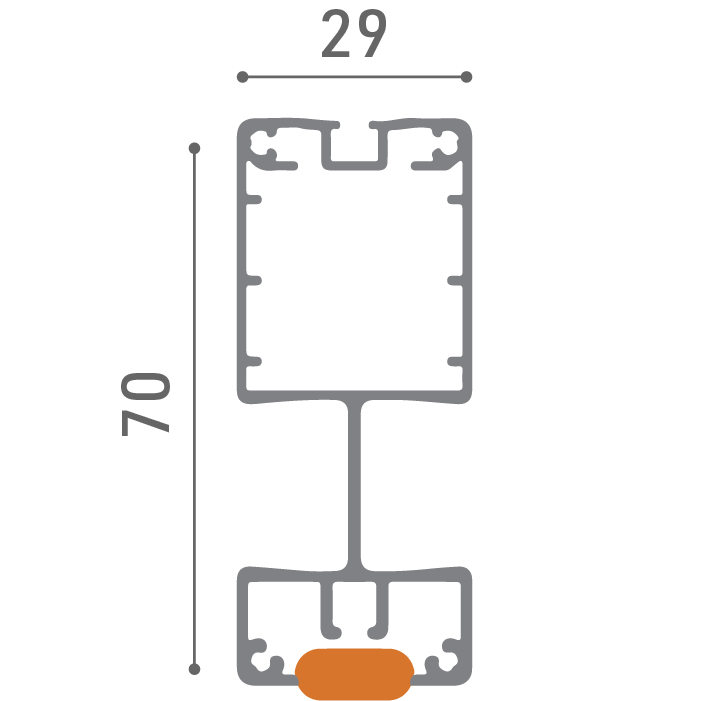

Handlebar
Bottom track

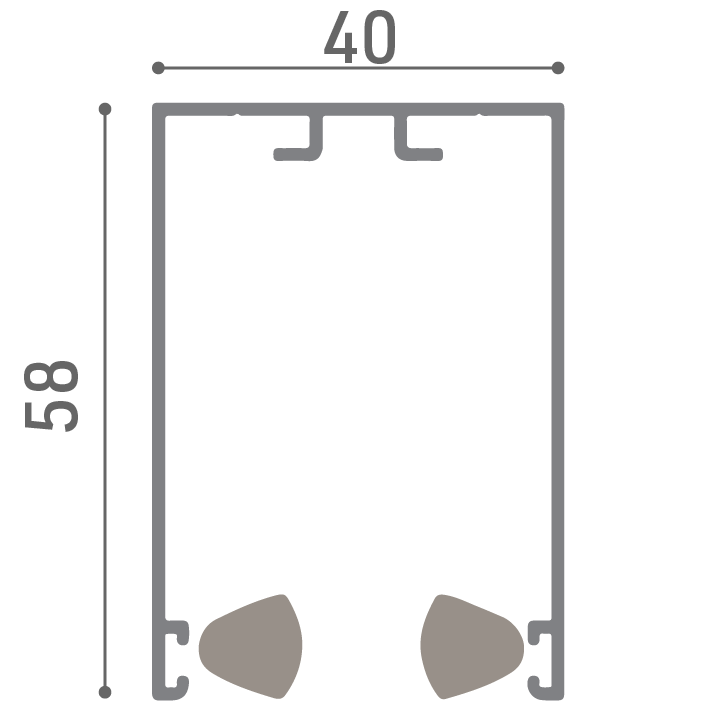

Top Track

Profiles Legend

Fastening
clips
Magnet
Counter Magnet
Brush
for Insect
Screen Cleaning
Brush
Brush

Recommended sizes (max)

Width: 3000 mm

Height: 2500 mm
