Free-standing Mosquito nets

Legend of characteristics
Vertical
Sliding
Horizontal
Sliding
Pleated
Net
Quick Click-Clack
Fastening/Release
Cassette
Size
Edge
Buttons
Windproof
Brush Track
Zip
Track
Treaded Sliding
Regulator
Recessed Low-Profile
Track (Flat)
Motorized
Rolling
Large
Dimensions
Matching Plastic
Components
Slow back-on-top
system
Anti-Strangulation
System
Roller blinds with 50mm cassette size
Vertical slide, equipped with buttons on the mesh edge and, upon request, our slow back-on-top system.
Suitable for windows and french doors, with manual spring winding and snap-closing system.

Components

Discover the specific components of Officine Rami's mosquito nets

Telescopic Tracks
Upon Request

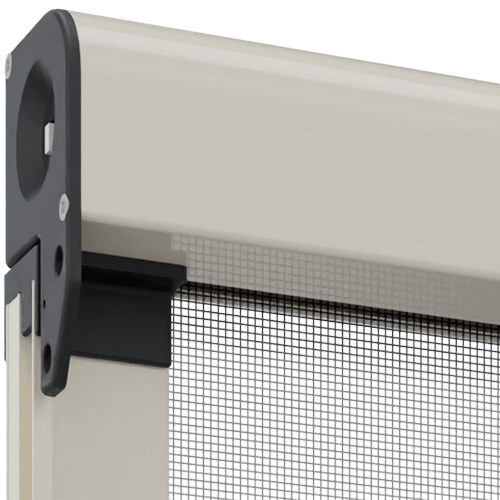

Adapter "invitation" guides
Technical Specifications

Each mosquito net has its own technical specifications; learn more

Suitable for: Window and french door
Winding type: Manual spring
Closing system: Snap-closing system
Track: Fixed with buttons
Handle: Ergonomic internal grip with anti-insect brush
Mesh: Fiberglass
Fixing System: Screw/plug

ON REQUEST
Winding Control: Slow back-on-top system
Track: Telescopic with buttons

NOTE: For proper operation in dimensions with 1801- and 2200-mm width, a height lower than 2200 mm is recommended.
When height is between 2601- and 2800-mm, a width lower than 1600 mm is recommended.

Color Range

Officine Rami offers a wide range of fabric colours, both for the aluminium structure and the mesh

Silver Anodized

Painted Bronze

White R. 9010

White R. 1013

Dark Brown

Brown R. 8017 Matte

Green R. 6005 Matte

Black R. 9005 Matte

Viv Green 101

Viv Brown 721

Viv Gray 700

Walnut B70 R

Light Oak P80 R

Walnut 102/70 R

Cherry 317/70 R

Light Douglas 335/80 R

Light Cork Oak 386/73R

White / White 22205

White / Sand 22203

White / Pearl Gray 22205

White / Dark Gray 22206

White / Dark Gray 22204

Gray / Anthracite 22207

White / White 1929

Beige/Beige 1930

Pearl Gray / Pearl Gray 13117

Brown / Brown 14853

Green / Green 1933

Gray / White 1498

Gray / White 1498

Fiberglass Mesh, Gray (Standard)

Panorama Mesh, Gray,
Thin with High Transparency

Zebra Mesh, with Black/White Stripes for Enhanced Visibility

Similtuff Mesh, Gray
(Recommended for Zip Applications)

Aisi 316 Stainless Steel Mesh
(Recommended for Fixed Panels)

Aluminum Mesh, Gray
(Recommended for Fixed Panels)

Pleated Mesh, Gray
(Only for EVA Model)

Pleated Mesh, Black

Antipo 30 Mesh, Gray, with Gtot of 0.34, Comparable to Solar Screens, Eligible for Tax Deductions

NOTES:
The colors shown in these tables are purely indicative and should not be considered as reference shades in case of color discrepancies from the actual ones.
Colors may not be available for some catalog models and may require an additional charge in some cases. Refer to color samples for a closer color match.ns compared to the ordered material's color. Aluminum plates are made using chemical components to maintain a consistent color over time, but they may have variations compared to the ordered material's color. Therefore, please request detailed information and availability by contacting the company in advance during the ordering phase.

Technical Specifications

Small technical details useful to choose the most suitable mosquito net for your needs

Cassette
Handlebar
Side Track

Profiles Legend

Fastening
Clips
Magnet
Counter Magnet
Brush
for Insect
Screen Cleaning
Windproof
Brush

Recommended sizes (max)

Width: 1800 mm

Height: 2600 mm
