Indoor Roller Blinds

Legend of characteristics
Vertical
Sliding
Horizontal
Sliding
Pleated
Net
Quick Click-Clack
Fastening/Release
Cassette
Size
Edge
Buttons
Windproof
Brush Track
Zip
Track
Treaded Sliding
Regulator
Recessed Low-Profile
Track (Flat)
Motorized
Rolling
Large
Dimensions
Matching Plastic
Components
Slow back-on-top
system
Anti-Strangulation
System

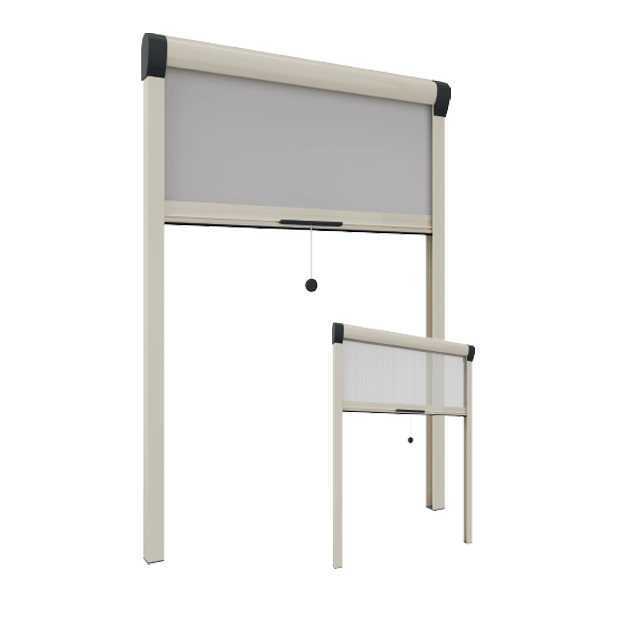

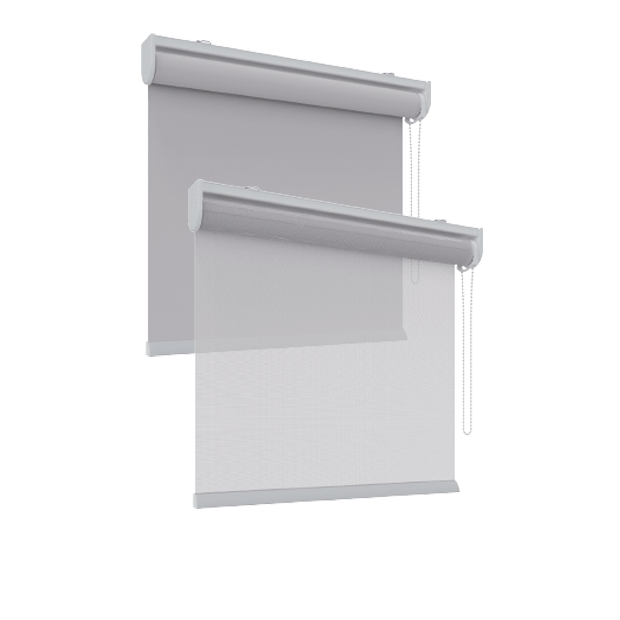

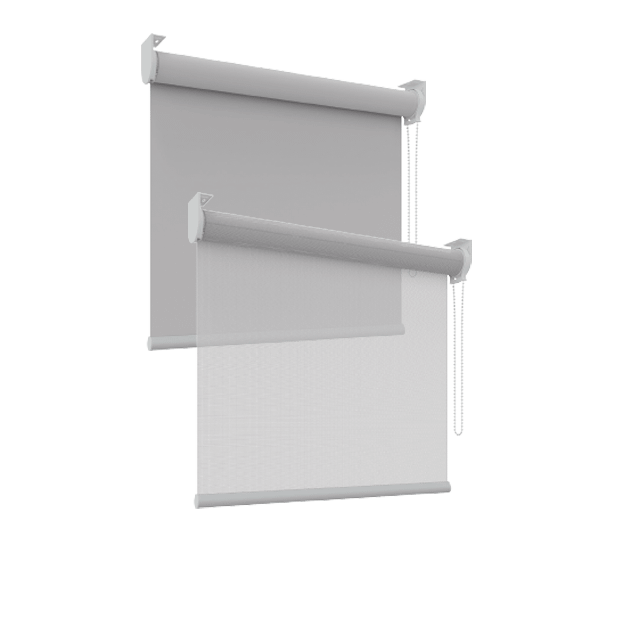

Vertical sliding roller blind.

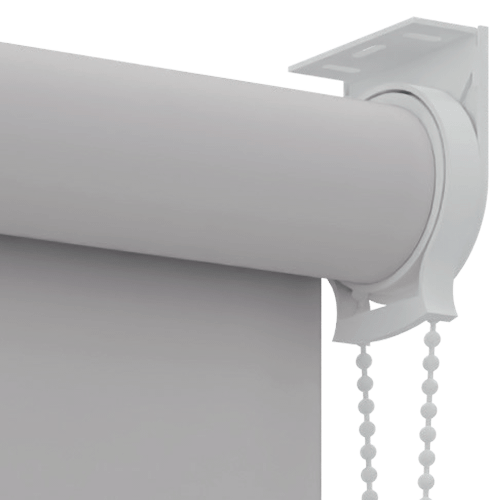

Manual winding with internal chain, stop at any point.

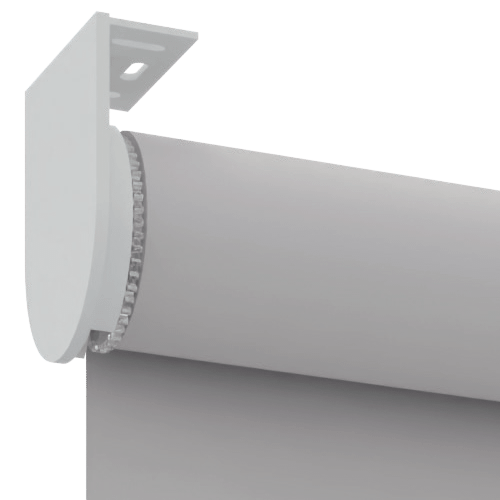

Fastening System with Clips.

Components

Discover the specific components of Officine Rami's mosquito nets

Ring
Concealed Mounting
Backward Winding
Front Winding
Upon Request
Technical Specifications

Each mosquito net has its own technical specifications; learn more

Winding: Manual with Chain, manual stop at any point
Fixing System: Clips (snap-in supports)

NOTE: Minimum and maximum dimensions may vary depending on the filtering/blackout fabric used.
For sizes larger than those indicated, please contact the sales
office.

Color Range

Officine Rami offers a wide range of fabric colours, both for the aluminium structure and the mesh

White / White 22205

White / Sand 22203

White / Pearl Gray 22205

White / Dark Gray 22206

White / Dark Gray 22204

Gray / Anthracite 22207

Silver Anodized

Painted Bronze

White R. 9010

White R. 1013

White / White 1929

Beige/Beige 1930

Pearl Gray / Pearl Gray 13117

Green / Green 1933

Black/Black 1931

Fiberglass Mesh, Gray (Standard)

Panorama Mesh, Gray,
Thin with High Transparency

Zebra Mesh, with Black/White Stripes for Enhanced Visibility

Similtuff Mesh, Gray
(Recommended for Zip Applications)

Aisi 316 Stainless Steel Mesh
(Recommended for Fixed Panels)

Aluminum Mesh, Gray
(Recommended for Fixed Panels)

Pleated Mesh, Gray
(Only for EVA Model)

Pleated Mesh, Black

Antipo 30 Mesh, Gray, with Gtot of 0.34, Comparable to Solar Screens, Eligible for Tax Deductions

NOTES:
The colors shown in these tables are purely indicative and should not be considered as reference shades in case of color discrepancies from the actual ones.
Colors may not be available for some catalog models and may require an additional charge in some cases. Refer to color samples for a closer color match.ns compared to the ordered material's color. Aluminum plates are made using chemical components to maintain a consistent color over time, but they may have variations compared to the ordered material's color. Therefore, please request detailed information and availability by contacting the company in advance during the ordering phase.

Filtering Fabrics
Composition: 23% Polyester, 77% PVC Weight: 450 +/- 20 (g/m2)
Thickness: 0.60 +/- 0.02 mm
Fire resistance: Class 1; B1 according to DIN 4102: Opening factor: 5%

Blackout Fabrics *
Composition (Type 1): 30% Fiberglass, 70% PVC Weight (Type 1): 407 (g/m2)
Thickness (Type 1): 0.30 mm
Fire resistance: Class 1 DM26/06/84
Opening factor: 0% - blackout

Blackout Fabrics **
Composition (Type 2): 28% Fiberglass, 72% PVC Weight (Type 2): 660 (g/m2) +/- 10%
Thickness (Type 2): 0.75 mm +/- 10%
Fire resistance: Class 1 (IT); M1 (F)
Opening factor: 0% - blackout

Technical Specifications

Small technical details useful to choose the most suitable mosquito net for your needs

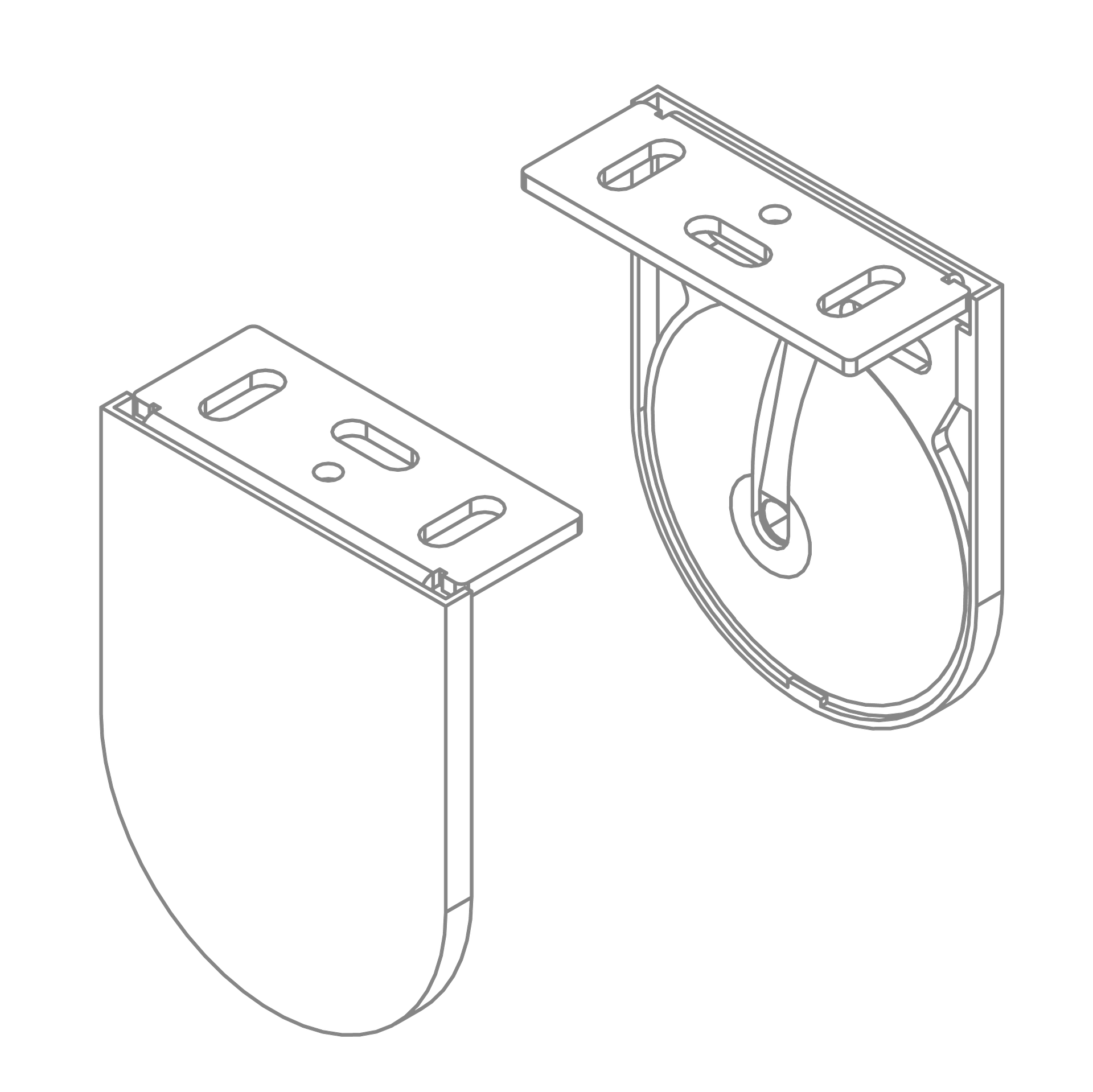

52x22x66h

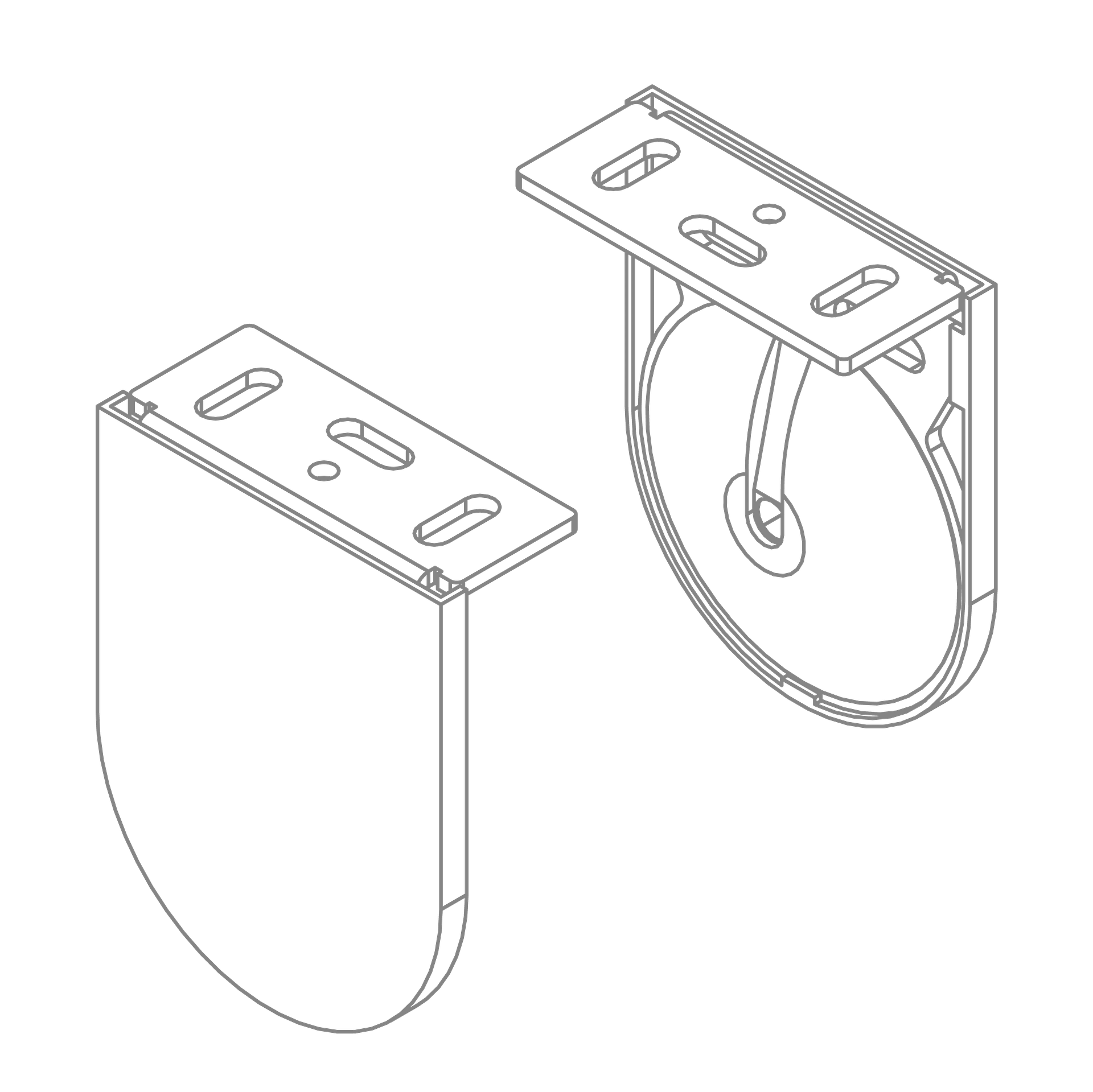

52x22x80h
Upon Request
Pre-assembly profile
Upon Request

Profiles Legend

Fastening
Clips
Magnet
Counter Magnet
Brush
for Insect
Screen Cleaning
Windproof
Brush

Recommended sizes (max)

Height: 600 mm

Width: 2200 mm

Height: 2500 mm
