Free-standing Mosquito nets

Legend of characteristics
Vertical
Sliding
Horizontal
Sliding
Pleated
Net
Quick Click-Clack
Fastening/Release
Cassette
Size
Edge
Buttons
Windproof
Brush Track
Zip
Track
Treaded Sliding
Regulator
Recessed Low-Profile
Track (Flat)
Motorized
Rolling
Large
Dimensions
Matching Plastic
Components
Slow back-on-top
system
Anti-Strangulation
System

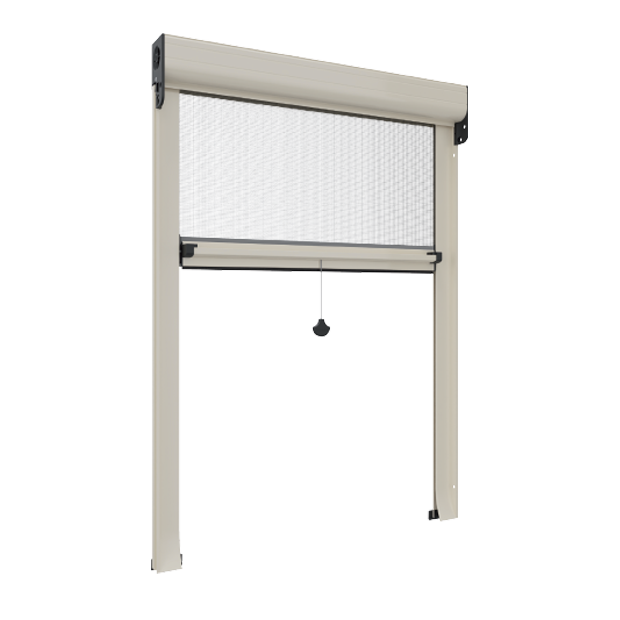

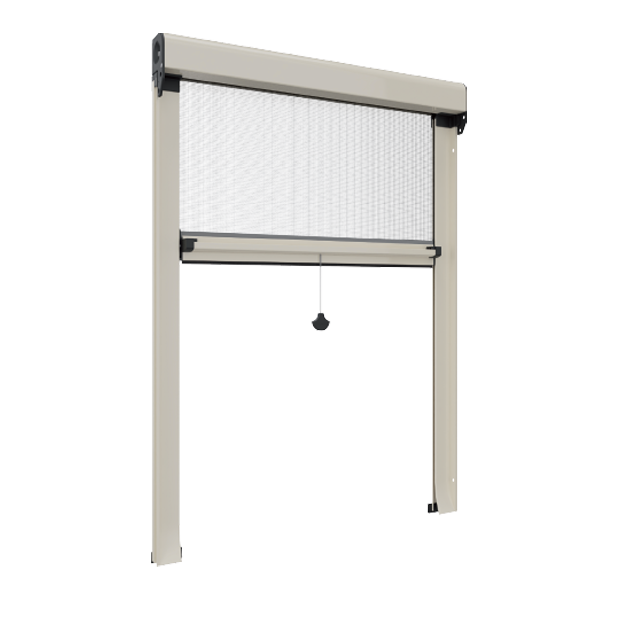

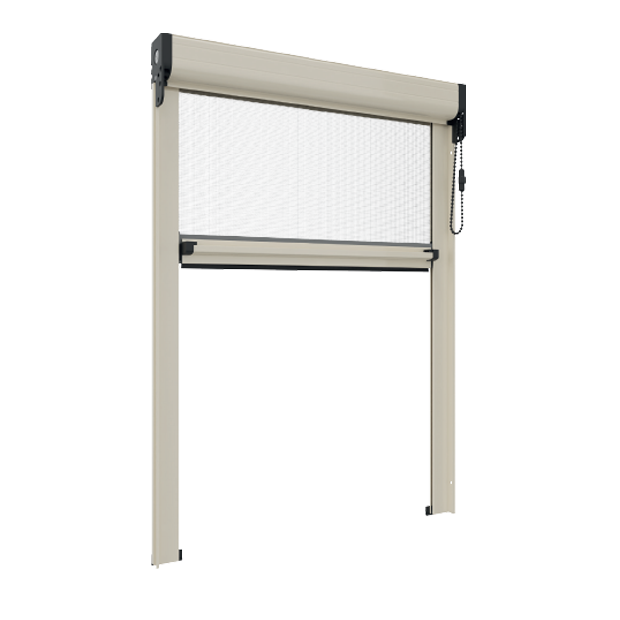

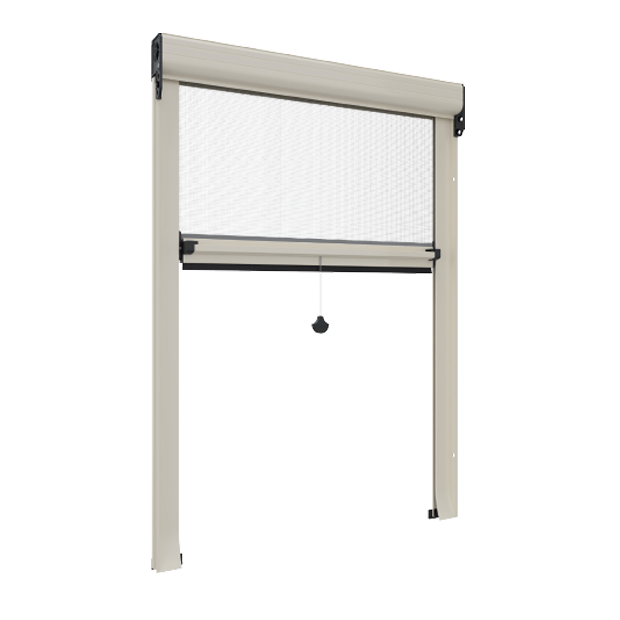

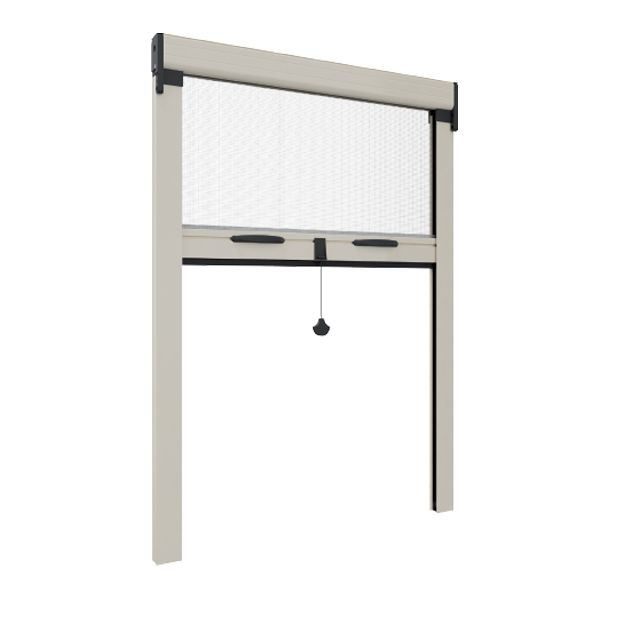

Free-standing mosquito nets with 31mm cassette size.
Vertical slide, equipped with a windproof brush.
Suitable for windows, with manual spring winding and a snap-closing system.

Components

Discover the specific components of Officine Rami's mosquito nets

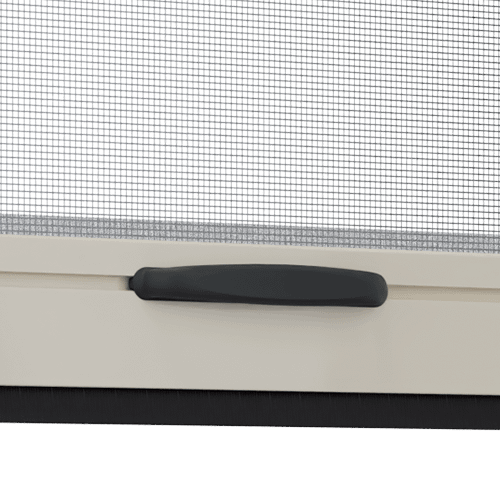

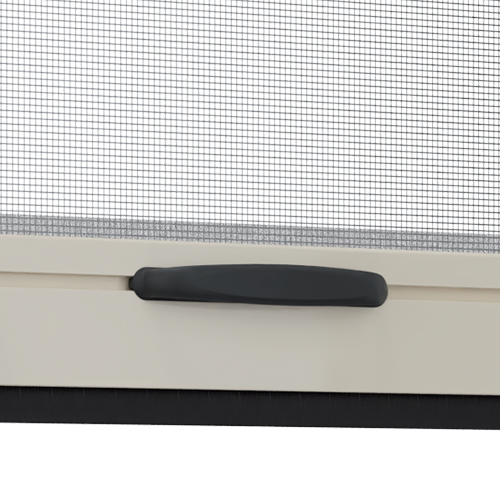

Handle

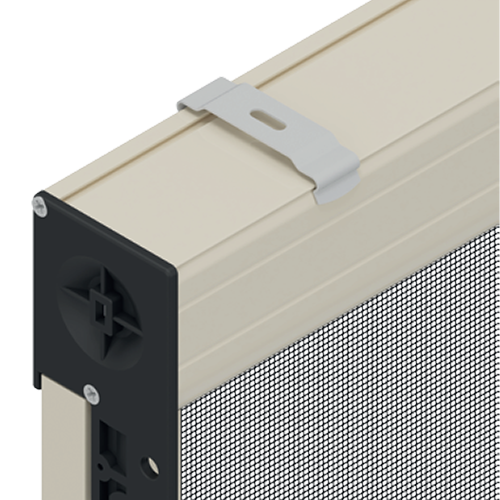

Clips
Upon Request

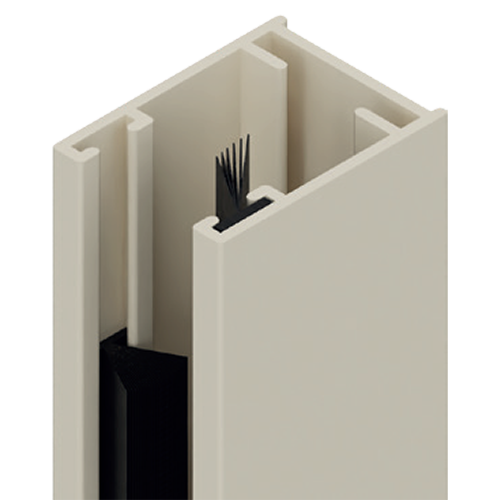

Windproof Tracks
Technical Specifications

Each mosquito net has its own technical specifications; learn more

Suitable for: Window
Winding type: Manual spring
Closing system: Snap-closing system
Track: Windproof
Handlebar: With anti-insect brush
Handle: Recessed
Mesh: Fiberglass
Fixing System: Screw/plug

ON REQUEST
Cassette: Equipped with a brush for recovery in out-of-true issues
Fixing System: Clips (snap-in supports)

Color Range

Officine Rami offers a wide range of fabric colours, both for the aluminium structure and the mesh

Silver Anodized

Painted Bronze

White R. 9010

White R. 1013

Dark Brown

Brown R. 8017 Matte

Green R. 6005 Matte

Black R. 9005 Matte

Viv Green 101

Viv Brown 721

Viv Gray 700

White / White 22205

White / Sand 22203

White / Pearl Gray 22205

White / Dark Gray 22206

White / Dark Gray 22204

Gray / Anthracite 22207

White / White 1929

Beige/Beige 1930

Pearl Gray / Pearl Gray 13117

Brown / Brown 14853

Green / Green 1933

Gray / White 1498

Gray / White 1498

Fiberglass Mesh, Gray (Standard)

Panorama Mesh, Gray,
Thin with High Transparency

Zebra Mesh, with Black/White Stripes for Enhanced Visibility

Similtuff Mesh, Gray
(Recommended for Zip Applications)

Aisi 316 Stainless Steel Mesh
(Recommended for Fixed Panels)

Aluminum Mesh, Gray
(Recommended for Fixed Panels)

Pleated Mesh, Gray
(Only for EVA Model)

Pleated Mesh, Black

Antipo 30 Mesh, Gray, with Gtot of 0.34, Comparable to Solar Screens, Eligible for Tax Deductions

NOTES:
The colors shown in these tables are purely indicative and should not be considered as reference shades in case of color discrepancies from the actual ones.
Colors may not be available for some catalog models and may require an additional charge in some cases. Refer to color samples for a closer color match.ns compared to the ordered material's color. Aluminum plates are made using chemical components to maintain a consistent color over time, but they may have variations compared to the ordered material's color. Therefore, please request detailed information and availability by contacting the company in advance during the ordering phase.

Technical Specifications

Small technical details useful to choose the most suitable mosquito net for your needs

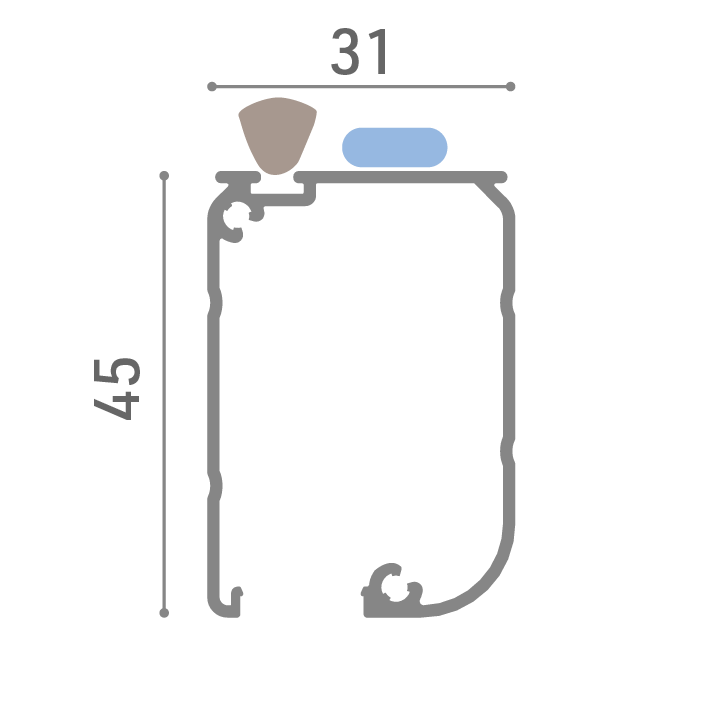

Cassette

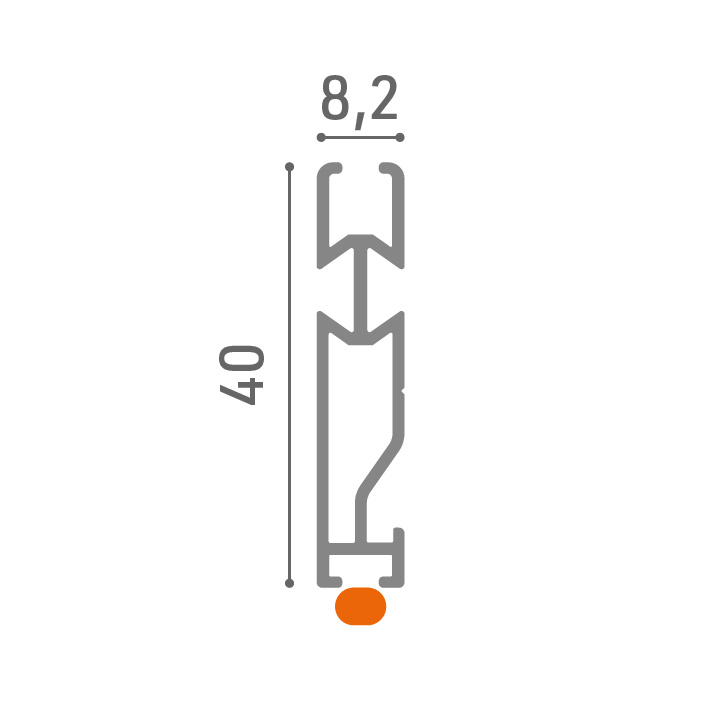

Handlebar

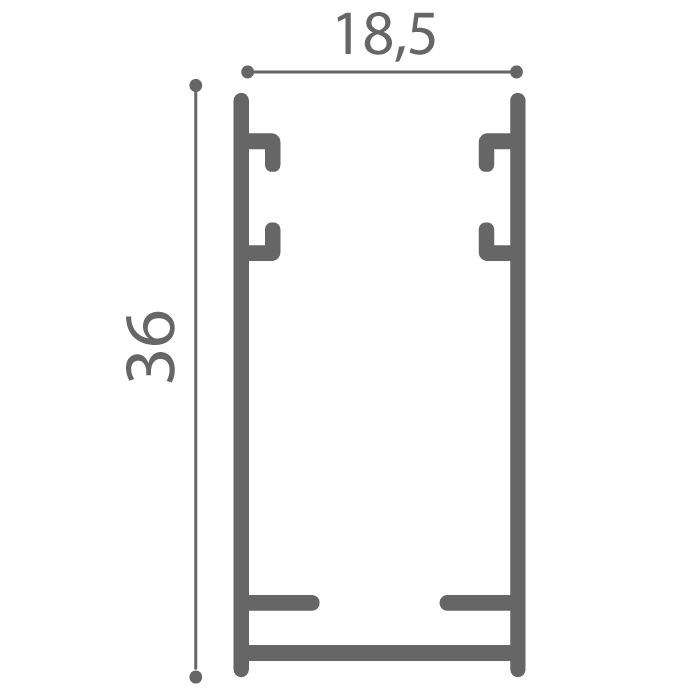

Side Track

Profiles Legend

Fastening
Clips
Magnet
Counter Magnet
Brush
for Insect
Screen Cleaning
Windproof
Brush

Recommended sizes (max)

Width: 1600 mm

Height: 1700 mm
